Humanscale M81 Mounting Arm
Introduction

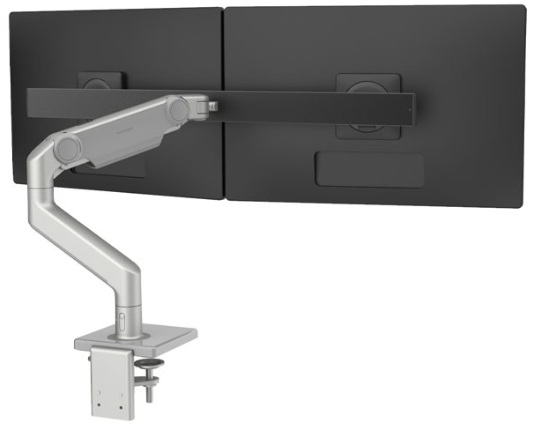

A high-end monitor mounting device made to maximize productivity and workspace ergonomics is the Humanscale M81 Mounting Arm. This arm is perfect for businesses, home workspaces, and collaborative settings since it is designed with precise mechanics and clean aesthetics, and it easily adjusts for single monitors up to 35 lbs (16 kg).
Features
- Easy Height, Tilt, and Rotation Changes with Patented Constant Force Technology
- Wide Compatibility – Fits VESA 75x75mm and 100x100mm Patterns
- Full Motion Range Height Adjustment: Vertical travel of up to 13.5″ (34 cm) Angle of tilt: ±85° 360-degree rotation 180° Pan
- Cable Management: Integrated channels maintain wire organization
- Aluminum construction with a matte black or polished chrome finish for a sleek appearance
Specification
- Maximum Weight Capacity: 35 pounds (16 kg)
- Range of Monitor Sizes: 13″-32″
- Mount Types: Grommet (for drilled installations) or Clamp (for desks 0.6″ to 3.1″ thick).
- Materials: pivot points made of steel and aircraft-grade aluminum
- Warranty: limited warranty for 15 years
Safety Information
- Never lift: More than 35 pounds as this could result in arm failure.
- Desk Density: Before installing the clamp or grommet, make sure it fits your desk.
- Frequent Examination: Every six months, check for looseness in the bolts and pivots.
- No Changes: The guarantee is nullified if the arm is altered. Expert Installation Suggested for large displays
Installation Instructions
STEP 1:
Remove the plastic front cover.
STEP2:

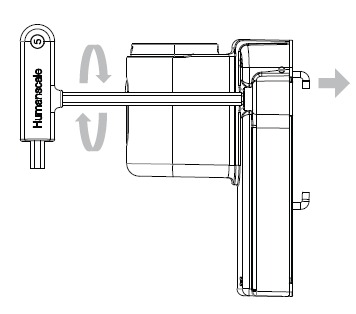

Adjust the spacing between hooks with the top screw to fit onto rail. Turn clockwise to tighten hooks and counter-clockwise to expand.
STEP 3:
Turn both front screws counter-clockwise to loosen the top hook if needed to fit onto rail.
STEP4:

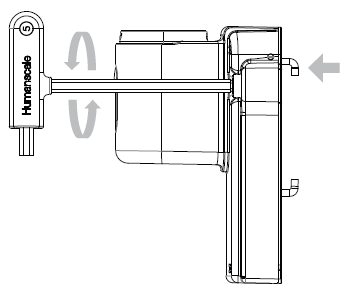

Place the mount on rail and turn both front screws clockwise to secure the top hook.
STEP 5:

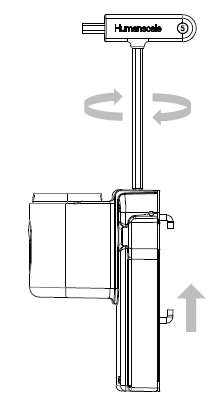

Turn the top screw clockwise to secure the lower hook.
STEP 6:

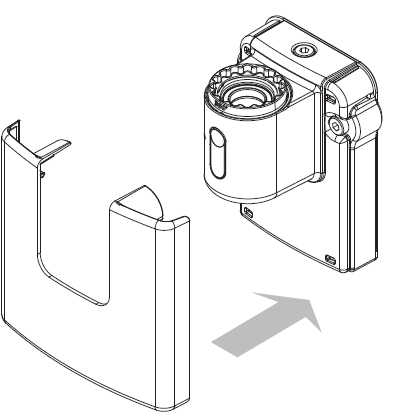

Reinstall the plastic cover.
STEP 7:

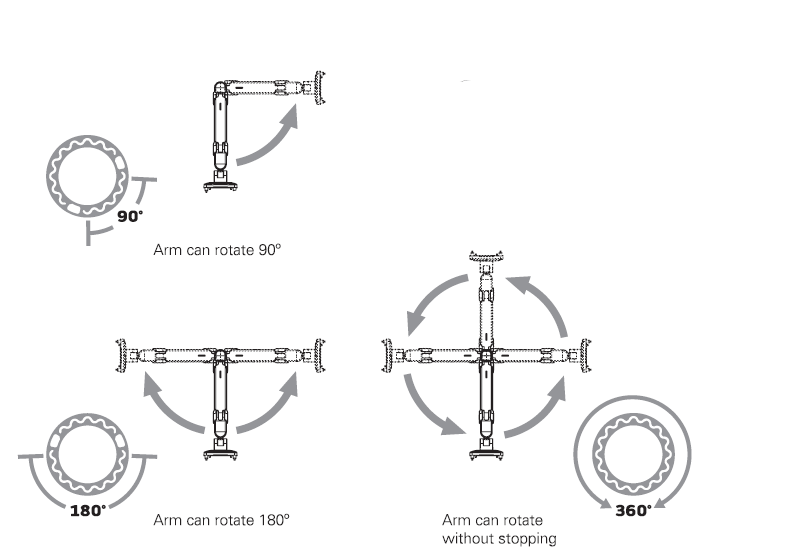

Position the stop ring to limit the arm’s range of motion. The marked angle will be in the center of the range of motion.
STEP 8:

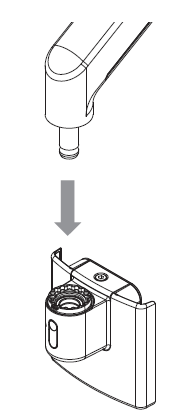

Insert monitor arm into the mount until release button locks in place. To remove arm press release button and pull the arm up near the joint.
Note: If using a 3 link configuration, one of the links must be a 4″ link.
Humanscale M81 Mounting Arm InstructionS Manuals
FAQS
What are the key features of the Humanscale M81 Mounting Arm?
The M81 features adjustable height, depth, and tilt settings, a quick-release mechanism for easy installation and removal of devices, integrated cable management for a clean workspace, and a sleek, minimalist design.
What are the ergonomic benefits of using the M81 Mounting Arm?
By allowing users to position their devices at the optimal height, angle, and distance, the M81 Mounting Arm promotes proper posture, reduces strain on the neck, shoulders, and eyes, and enhances overall comfort during extended periods of use.
Is the Humanscale M81 Mounting Arm easy to install?
Yes, the M81 Mounting Arm is designed for easy installation with minimal tools required. It typically comes with mounting hardware and instructions for straightforward setup.
Can the M81 Mounting Arm be adjusted for both sitting and standing workstations?
Yes, the M81 Mounting Arm offers a wide range of height and tilt adjustments, making it suitable for both sitting and standing workstations, as well as users of varying heights.
What is the weight capacity of the Humanscale M81 Mounting Arm?
The M81 Mounting Arm is designed to support devices weighing up to [insert weight capacity] pounds (kilograms), ensuring stability and reliability in use.
