INTRODUCTION

The K-array Pythons are passive speaker systems, comprised of 3.15” neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. Available in two lengths, the KP52 features 6 drivers in a 0.5 m (20”) chassis, while the KP102 features 12 drivers in a 1 m (40”) chassis. The Pythons’s closely spaced cone drivers provide phase coherence, low distortion and focused listening both up close and at a distance. To accommodate a range of applications, the vertical dispersion pattern can be switched for either wide or narrow coverage.

Optional rigging and linking accessories allow multiple speakers to be interconnected, creating a wide array of vertical and horizontal configurations for temporary or permanent installation. For integration with other speakers or amplifiers, the KP52 and KP102 offer selectable impedance (8Ω/32Ω for the KP52 and 4Ω/16Ω for the KP102).

Pythons are able to reproduce the entire vocal frequency range with excellent intelligibility, starting from 100 Hz.
Integrating powered K-array subwoofers (KMT12, KMT18, KMT21, KMT218) ensures excellent coverage of the entire musical frequency range. K-array’s KA amplifier series also features custom presets, optimized for use with the Python series. All Python components are designed by K-array and custom-made under K-array’s quality control system.

Symbols

• K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations!
• Please dispose of this product at the end of its operational lifetime by bringing
  it to your local collection point or recycling center for such equipment.
• This symbol alerts the user to the presence of recommendations about the product’s use and maintenance.
• Warning! Dangerous voltages: RISK of electric shock.

KEY FEATURES

• Unique performance-to-size ratio
• Vertical, Horizontal and 3D line-array applications
• Multiple 3.15” long-excursion full-range cone drivers
• Wide horizontal coverage
• Selectable vertical pattern (Spot/Flood)
• Electronically protected
• Selectable impedance (KP52: 8/32 Ω, KP102: 4/16 Ω)
• Weather proof, suitable for outdoor installations – IP54
• Available in black or white

APPLICATIONS

• Theatre, club, house of worship
• Front fill and under-balcony fill
• Portable and installed AV systems
• Stage and AV studio monitoring

SAFETY INFORMATION

• Read these instructions.
• Keep this instructions.
• Heed all warnings.
• Follow all instructions and keep all warnings.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus.
• When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Avoiding hearing damage. Professional loudspeakers are capable of producing extremely high sound levels and should be used carefully. Never stand close to loudspeakers driven at high volume. Set the volume to a safe level. You can adapt over time to a higher volume of sound that over time may sound normal but can be damaging to your hearing. Hearing loss worsens after exposure to a sound level of 90 dB or over for an extended period of time. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the less time is required before your hearing could be affected.
• Choking Hazards. This device contains small parts, which may present a choking hazard to small children. Keep the device and its accessories away from small children.
• Do not make repairs yourself. Never attempt to disassemble, repair or modify the system yourself.
• Disassembling the unit may cause damage that is not covered under the warranty. The device contains no user-serviceable parts. Repairs should only be performed by factory trained service personnel.
• Sound distortion. Do not operate speakers for an extended period of time with sound distortion. This is an indication of malfunction, which in turn can generate heat and result in a fire.
• Carrying, handling and installing the device. The device contains sensitive components. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, incinerate, paint, or insert foreign objects into it. If your device has been dropped or damaged unplug the power cable immediately.

Set up
Set up your device on a stable retaining horizontal surface. If combined or mechanically connected with other products, always verify the stability of the resulted system. Install the unit only in a location that can structurally support the weight of the unit and far away from people who can interfere with the stability of the system. Assure that the wind does not interfere with the system’s stability, taking extra securities like chains, weights, ropes or any other certified anchoring systems. Doing otherwise may result in the unit falling down, causing personal injury or property damage or even death. The system should only be suspended by qualified personnel following safe rigging practices. Secure fixings to the building structure are vital. To clarify any doubt you may have, seek help from architects, structural engineers or other specialists.

UNPACKING

Each K-array speaker is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company. Only the consignee may institute a claim procedure regarding the system’s electronic equipment.

PHYSICAL

KP102 LAYOUT

WIRING

KP52 and KP102 internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a Speakon NL4 connector. Pins 1+ and 1-, such as pins 2+ and 2-, are directly wired from one socket to the other, so the two sockets are equivalent and can be used to connect the speaker to the amplifier or to connect the speaker to another one driven in parallel by the same amplifier channel.

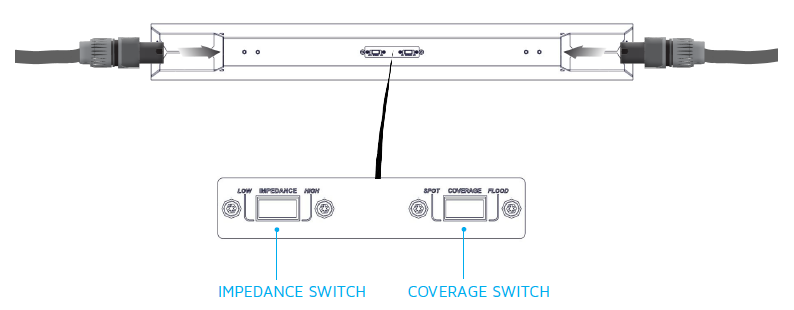

IMPEDANCE SWITCH
KP52 and KP102 features a switch which allows users to select the impedance of the speaker (KP52: 8/32 Ω, KP102: 4/16 Ω). The value to be selected depends mainly on the amplifier you use to drive the unit. Impedance must be set to high (32 Ω for KP52 and 16 Ω for KP102) when speakers are driven by KMT active modules or by the KA84 amplifier. Low impedance may be used when speakers are driven by a KA24 amplifier. Please refer to your amplifier’s specifications to select the correct speaker impedance for your configuration.

COVERAGE SWITCH

KP52 and KP102 feature a switch which allows users to select the vertical coverage of the speaker. Flood coverage sets a wide vertical diffusion. Flood coverage is suggested for single speakers in diffused short throw applications to obtain maximum diffusion with a minimum footprint. Spot coverage sets a narrower vertical diffusion angle and is recommended for long throw or monitoring application. When more units are combined in a line array configuration, make sure to set the coverage to Spot.

ACCESSORIES AND CONFIGURATIONS

K-array offers a variety of dedicated accessories to mount and interconnect the speakers for a wide range of applications. In this section we introduce you to the main accessories available for this product.

SUSPENDING FROM THE FLY-BAR
KP52 and KP102 units can be suspended using the K-FLY2 fly bar accessory and the K-JOINT2 hardware accessory used to connect together two units or to connect a unit to the fly bar. Mixed configuration with both KP52s and KP102s in the same cluster are also possible.

HANGING ON THE WALL
The K-WALL2 and K-WALL2L accessories are used to mount a speaker on a wall.

STANDING ON THE BASE
The K-BASE2 accessory assists in standing up to 2 meters of KP52/KP102. For proper installation and operation, connect the units to the base with K-FOOT2 and K-JOINT2 accessories. Where possible, screw the feet of the K-BASE2 to the ground.

HORIZONTAL CLUSTER
The KP-CLUSTER2 accessory is used to mount on a horizontal cluster of three KP52/KP102 speakers on the wall.
KP-CLUSTER2 comes in a set of three different models: one with no angle between the three speakers, one with a 30° angle between the speakers, one with a 60° angle between the speakers.

GROUND LAYING
KP-STAGE allows users to safely lay the speakers on the ground with three different angles: 0°, 30° and 45°. Ideal applications are monitoring and front-fill.

STANDING ON A KMT SUBWOOFER

Up to two meters of KP52/KP102 can be mounted on a KMT subwoofer by using the K-FOOT2 and K-JOINT2 accessories. Acoustically speaking, two KP102s perfectly match with a KMT21 subwoofer. An excellent example of the use of this combination is the K-array portable system KR402.

SERVICE

To obtain service:

• Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center.
• I f you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Customer Service and be prepared to describe the problem clearly and completely.
• I f the problem cannot be resolved over the phone, you may be required to send the unit in for service. In this instance, you will be provided with an RA (Return Authorization) number which should be included on all shipping documents and correspondence regarding the repair. Shipping charges are the responsibility of the purchaser.

Cleaning:
Use only a soft, dry cloth to clean the product. Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives. Do not use any sprays near the product or allow liquids to spill into any openings.

TECHNICAL SPECIFICATIONS

• Power handling 720 W(AES)
• Max power 1200W
• Frequency Range 100 Hz – 20 kHz (- 10dB) (1)
• Impedance 4 Ω / 16 Ω (selectable)
• SPL 1W/1mt 99 dB (2)
• Maximum SPL 128 dB (cont.) – 134 dB (peak)
• Horizontal 90°
• Vertical 7°- 30° (selectable)
• Type External Crossover required
• Frequency 100 Hz, 24 dB/oct suggested minimum
• Full range 12 x 3.15” Neodymium magnet with 1” voice coil
• Impedance 4 Ω / 16 Ω
• Coverage Spot / Flood
• Connector 2 x 4-pin Speakon
• Wiring 1+ 1- (signal IN & LINK); 2+ 2- (through)
• Dimensions 8.9 x 100.0 x 11,8 cm
  • (3.5” x 39.37” x 4.64”)
• Weight 12.0 kg (26.5 lbs)

EN54-24 DATA

• Power handling 15 W
• SPL 1W/1m 99
• Maximum SPL 110 dB
• Connector IN 1+ 1-
• Vmax In (Pink Noise)
  • 5.80 V @ 4 Ohm
  • 11.60 V @ 16 Ohm
• Frequency Range 100 Hz – 20 kHz
  • 180° @ 500 Hz
  • 170° @ 1000 Hz
  • 130° @ 2000 Hz
  • 120° @ 4000 Hz
• Coverage Vertcal
  • 20° @ 500 Hz
  • 12° @ 1000 Hz
  • 7° @ 2000 Hz
  • 10° @ 4000 Hz
