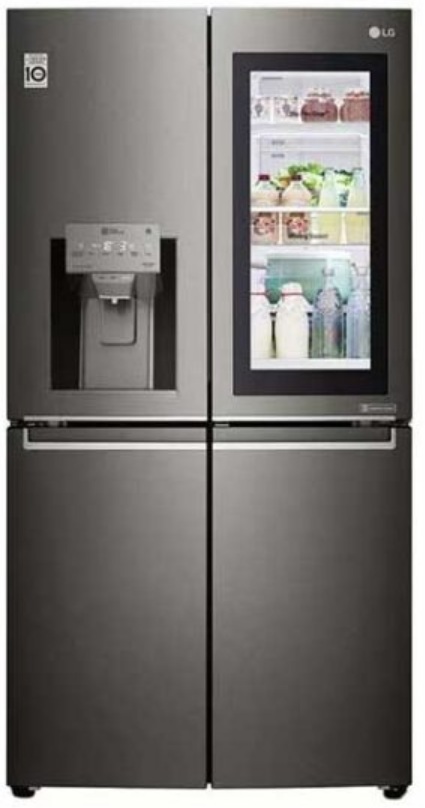

LG GR-F258 Fridge
Introduction
The LG GR-F258 is a bottom-freezer refrigerator with smart features for the best possible food preservation, roomy storage, and energy-efficient cooling that is ideal for modern homes. It minimizes noise and energy usage while maintaining accurate temperatures thanks to LG’s Linear Cooling technology.
Specification
| Section | Description |
| CASE PARTS | Exploded view of the refrigerator’s structural components. |
| FREEZER PARTS | Detailed view of freezer-specific parts for replacement. |
| REFRIGERATOR PARTS | Illustration of parts found in the refrigerator section. |
| DOOR PARTS | Breakdown of parts that comprise the refrigerator doors. |
| DISPENSER PARTS | Components of the water/ice dispenser mechanism. |
| ICE & MAKER PARTS | Parts associated with the ice maker and storage area. |
Features
- Smart Diagnosis: Fast troubleshooting via smartphone (with LG ThinQ app)
- Linear Cooling: Consistent temperature management (±0.5°C) for extended food freshness
- Bottom Freezer Design: Easy access to fresh food in the refrigerator section
- Energy-efficient: Inverter compressors use less electricity
- Moist Balance Crisper: Maintains fruits and vegetables at the ideal humidity level
- Door Cooling+: Provides even airflow for steady cooling
Safety Information
- To guarantee appropriate door sealing, place on a level surface.
- Permit 50 mm of space for ventilation on the sides and back.
- Avoid packing shelves too full (maximum weight per shelf: 20–25 kg).
- Avoid heat sources such as radiators and ovens.
- Avoid using extension cords and use a dedicated power outlet instead.
- Before doing any repair or cleaning, unplug.
- Food should chill before being stored.
- Liquids should be covered to avoid spills.
Product Using Instructions
CASE PARTS
A detailed diagram showing an exploded view of case parts. Each part is labeled with a position number for identification.
FREEZER PARTS
An exploded view diagram illustrating various freezer parts. Each component is numbered to correlate with a part list.
REFRIGERATOR PARTS
Depiction of refrigerator parts in an exploded view format, with each part clearly numbered to assist in ordering specific components.
DOOR PARTS
An exploded view of the refrigerator door components, detailing the various parts and their corresponding numbers for easy identification and ordering.
DISPENSER PARTS
An illustration showing the individual parts of the dispenser mechanism, each part is numbered to facilitate ordering replacements.
ICE & MAKER PARTS
An exploded diagram showcasing the parts involved in the ice making process within the refrigerator. Components are numbered for reference.
Exploded Views & Replacement Parts Lists

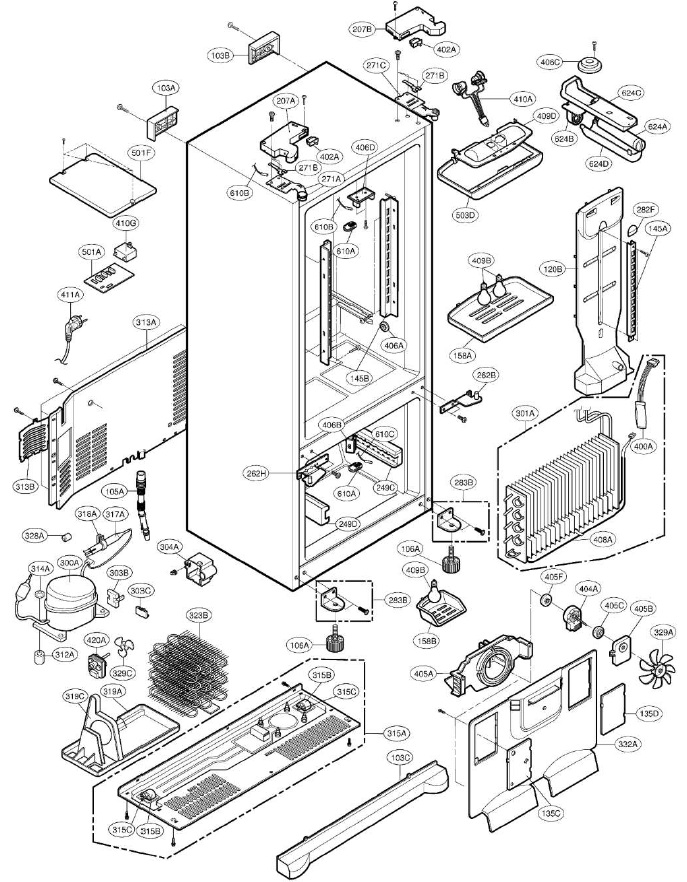

CASE PARTS
CAUTION: Use the part number to order part, not the position number.

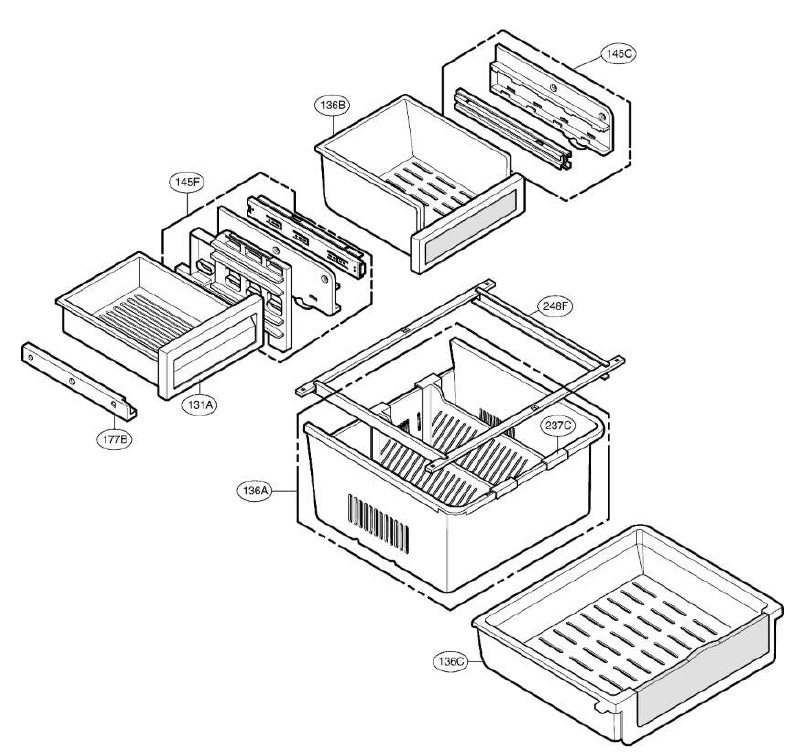

FREEZER PARTS
CAUTION: Use the part number to order part, not the position number.

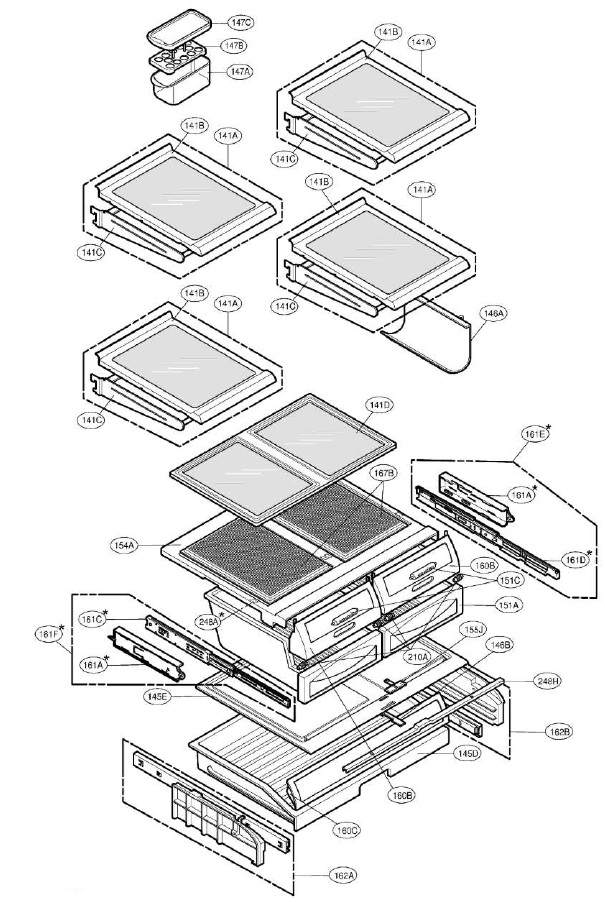

REFRIGERATOR PARTS
CAUTION: Use the part number to order part, not the position number.

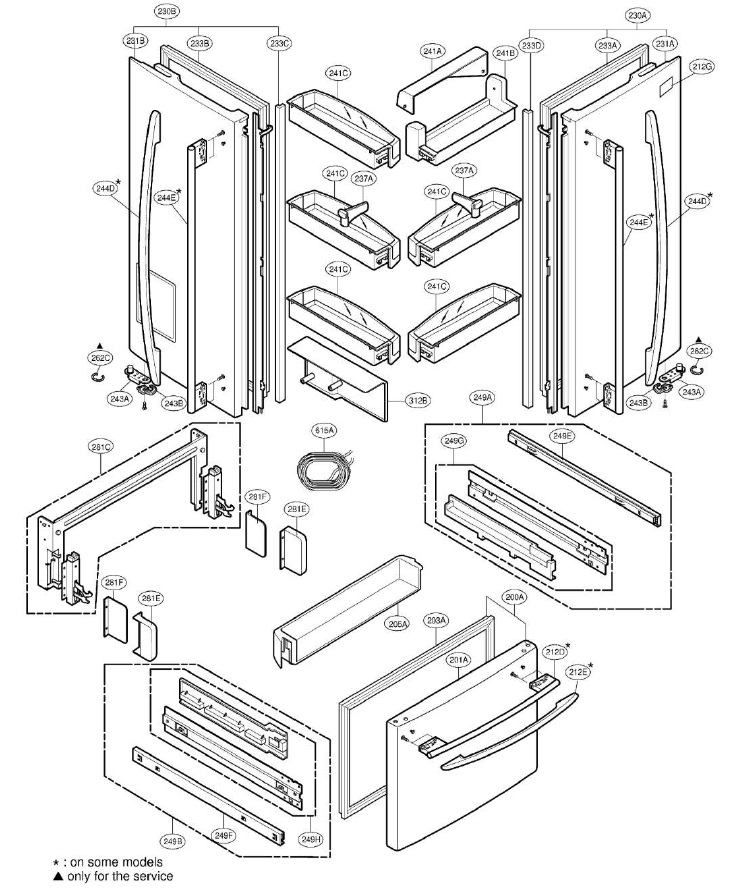

DOOR PARTS
CAUTION: Use the part number to order part, not the position number.

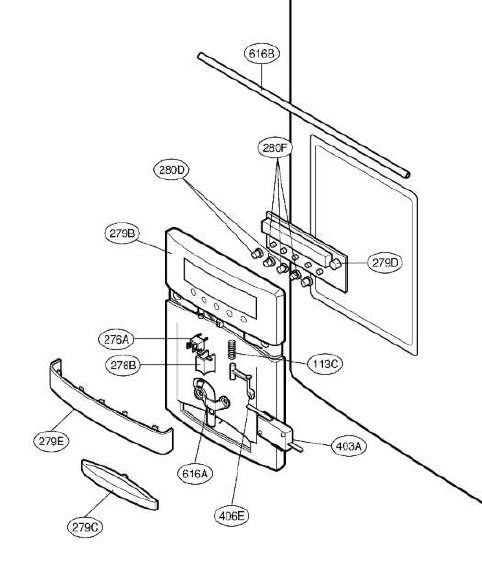

DISPENSER PARTS
CAUTION: Use the part number to order part, not the position number.

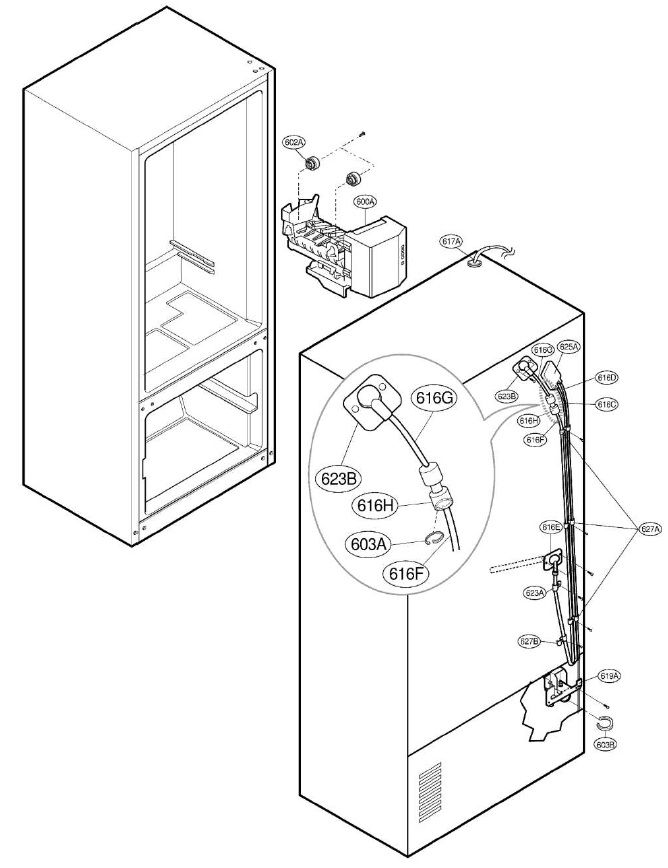

ICE & MAKER PARTS
CAUTION: Use the part number to order part, not the position number.
Troubleshooting
- Is Your Fridge Not Cooling Enough?
- Verify that the door is completely closed.
- Make sure the air vents within are not obstructed.
- Too Much Frost in the Freezer?
- Check for gaps in the door seal and replace it if necessary.
- Don’t leave the door open for extended periods of time.
- Water Seeping Under or Inside the Refrigerator?
- Make sure the water tank (if any) is installed correctly.
- Clear the drain hole (at the rear of the refrigerator).
- Noisy Sounds?
- Make sure the refrigerator is level (move the feet if necessary) and look for anything that might be in contact with the compressor.
- Is Your Ice Maker Not Working?
- Verify that the water supply is connected (for models that have one) and see if the ice maker is activated in the settings.
LG GR-F258 Fridge Instructions Manual
FAQ
Q: How do I order a replacement part?
A: Use the part number, not the position number indicated on the diagram, to order a replacement part.
Q: Are all parts available for every model?
A: Some parts are model-specific, as indicated by an asterisk (*) or a caret (^) in the diagrams.
Q: Can I use the position number for service requests?
A: No, the part number should be used for service requests as the position number is for identification purposes only.
Q: Where can I find the part number?
A: The part number is associated with the visual representation of each part in the exploded view diagrams.
Q: What type of refrigerator is the LG GR-F258?
A: The LG GR-F258 is a side-by-side refrigerator.
