Manhattan 102636 Power Bank with Integrated USB-C Plug Instructions Manual

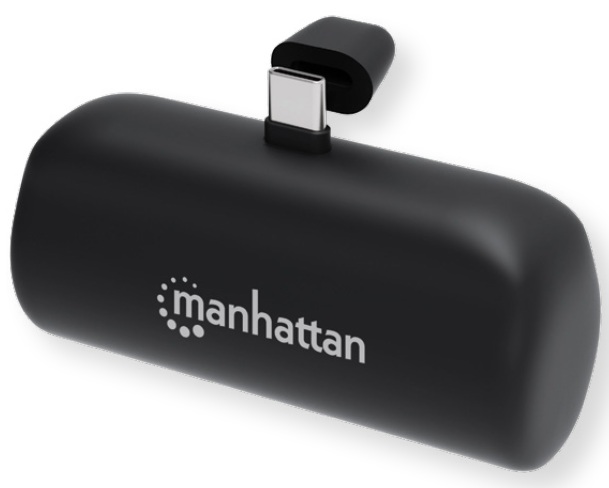

Manhattan 102636 Power Bank with Integrated USB-C Plug

Introduction

With an integrated USB-C socket, the Manhattan 102636 Power Bank is a small, high-capacity portable charger that makes charging convenient when on the road. Featuring a foldable USB-C plug and extra USB-A ports to charge many devices at once, this product, which is intended for professionals, regular users, and travelers, does away with the need for additional cords.

Specification

• Type of Battery: Lithium-Polymer 10,000mAh (3.7V)/37
• Wh of capacity USB-C (5V/3A, 9V/2A, and 12V/1.5A)
• input Results: USB-C PD: 9V/2A, 12V/1.5A, and 5V/3A (18W maximum)
• USB-A: 2.4A/5V (12W maximum)
• Size: approximately 110 x 70 x 25 mm
• Weight: about 220 grams

Features

• Foldable design with an integrated USB-C plug allows for direct charging without a wire.
• USB-C (18W PD) and USB-A (12W) dual output ports allow for multi-device charging.
• The 10,000mAh high capacity is sufficient for two to three complete smartphone charges.
• Small and Travel-Friendly: TSA-compliant for air travel, slim design
• Auto-Sensing Technology: identifies devices to provide the best charging speed

Safety Information

• Temperature regulation, short circuit, overcharge, and overdischarge RoHS, FCC, and CE certified
• Steer clear of water, intense heat (>45°C), and direct sunshine.
• Avoid removing the battery or puncturing it.
• When not in use, store in a cool, dry location. Only use approved USB-C cables to charge quickly.

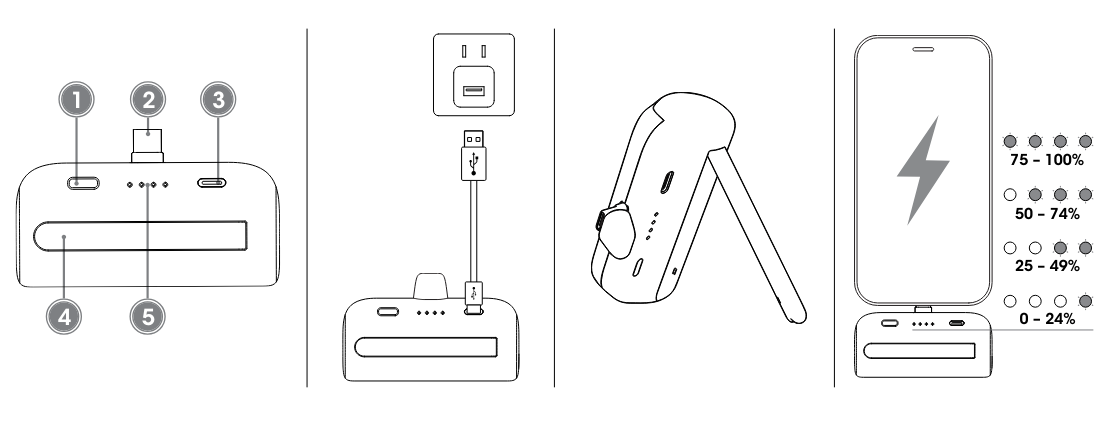

Instructions

• Charge your device by connecting it to the built-in USB-C Plug (2) and pressing the Power On/Off button (1);
• Recharge the Powerbank using the USB-C cable (3) and a 5V 2A or 9V 2A power adapter (not included);
• Use the Kickstand (4) for hands-free convenience;
• Monitor the battery level with the LED Battery Indicator (5)

Notes

• Lay the Powerbank only on straight and stable surfaces to avoid falls;
• Do not expose the Powerbank to direct sunlight or heat for extended periods;
• Do not allow the Powerbank to come into contact with water or other liquids;
• Do not try to open the Powerbank.

For specifications, go to manhattanproducts.com. Register your product at register.manhattanproducts.com/r/102636 or scan the QR code below.

Troubleshooting

• Is Your Power Bank Not Turning On?
  • Hold down the power button for at least three seconds. Recharge a deeply depleted battery using USB-C for at least 30 minutes.
• Slow Rate of Charging?
  • Make sure the charger you’re using is compatible with PD (e.g., 18W+ USB-C brick). Inspect the USB-C port for any debris.
• Is Your Device Not Charging?
  • Try turning the USB-C foldable plug; it might need to be repositioned. To isolate the problem, try using a different cable or gadget.
• Is it getting too hot?
  • Unplug it right away and place it in a cool spot. Do not charge when in a bag. 5. Don’t LED Indicators Work? Reset by plugging in for ten or more minutes.

For additional benefits

Scan to register your product warranty or go to:

• register.manhattanproducts.com/r/102636
• https://register.manhattanproducts.com/r/102636

Waste Electrical & Electronic Equipment

Disposal of Electric and Electronic Equipment (applicable in the E.U. and other countries with separate collection systems)

This symbol on the product or its packaging means that this product must not be treated as unsorted household waste. In accordance with EU Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this electrical product must be disposed of in accordance with the user’s local regulations for electrical or electronic waste. Please dispose of this product by returning it to your local point of sale or recycling pickup point in your municipality.

Warranty

manhattanproducts.com

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: reorient or relocate the receiving antenna; increase the separation between the equipment and the receiver; connect the equipment to an outlet on a circuit different from the receiver; or consult the dealer or an experienced radio/TV technician for help.

CE
This device complies with the requirements of CE 2014/30/ EU (UKCA Electromagnetic Compatibility Regulations 2016) and / or 2014/35/EU (UKCA Electrical Equipment [Safety] Regulations 2016). The Declaration of Conformity for is available at:
support.manhattanproducts.com/barcode/102636

North & South America IC Intracom Americas 550 Commerce Blvd. Oldsmar, FL 34677 USA

Asia & Africa IC Intracom Asia 4-F, No. 77, Sec. 1, Xintai 5th Rd. Xizhi Dist., New Taipei City 221 Taiwan

Europe IC Intracom Europe Löhbacher Str. 7 D-58553 Halver Germany

All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
