Zhuoaite ZAT-GP3A Smart Gamepad Instruction Manual

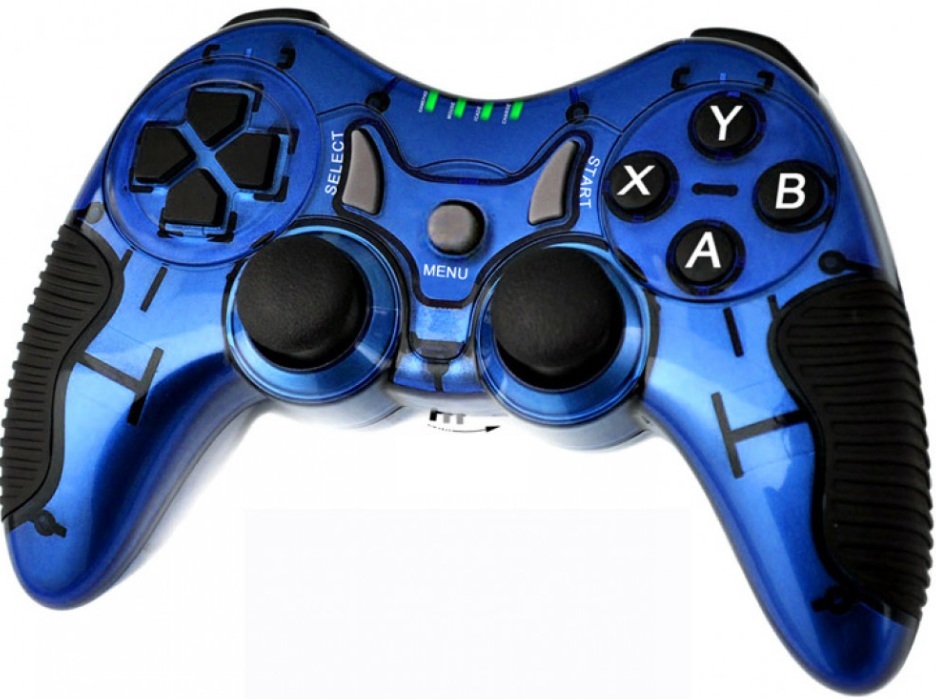

Zhuoaite ZAT-GP3A Smart Gamepad

Product introductions

A multipurpose wireless controller made for PC, Android, and iOS gaming is the Zhuoaite ZAT-GP3A Smart Gamepad. With its dual vibration feedback, adjustable buttons, and ergonomic design, it improves gameplay for both recreational and competitive players. With Bluetooth 5.0 and USB-C wired modes, it provides plug-and-play convenience and is compatible with popular games and cloud gaming services like Xbox Cloud and GeForce NOW.

Product Specifications

• Exclusive game Store.
• Fit for Android smart phone/ Tablet/TV Box/ Smart TV.
• Use 2.4Ghz RF wireless transmission technology, distance ≥ 8M.
• Support android standard menu key including MODE.
• Use 2 x AA batteries (Notincluded).
• Service life of buttons: 500000 times.
• Service life of rocker: 500000 times.
• Surface finishes:anti sweat and oil.
• Low power consumption.
• 1xWireless Gamepad
• 1xNano Receiver.
• Gift Box. Packed Safely in blister

Fast start

1. The receiver received intelligence android TV or TV box ofa USB interface;
2. The gamepad is equipped with batteries, open the power switch to \”ONI” position, the handles and receiving head automatic connection, the connection is successful after the red LED normally ON, without success, please press MODE button twice quickly and receiver forced the attachment.

Features

• Support for Multiple Platforms: Compatible with TVs, Android (6.0+), iOS (13+), and Windows 10/11
• Dual connectivity: USB-C wired (low-latency) or Bluetooth 5.0 wireless
• Personalized Controls: programmable buttons using a companion app (Windows/Android) Enhanced feedback thanks to two motors that create realistic vibration effects
• Extended Battery Life: 600mAh battery with over 10 hours of charging
• Ergonomic Design: Comfortable textured triggers and non-slip grips

Safety Information

• Only use 5V/1A USB chargers; rapid charging could harm the battery. Avoid disassembling or exposing it to water (only IPX4 splash-resistant).
• Avoid crushing or dropping as this could harm analog sticks. Stay clear from sources of heat (>40°C). When not in use, store in a dry location.
• Safe RF exposure levels approved by the FCC, CE, and RoHS

Gamepad operation in detail

Power On/Off

1. Open the power switch to “ON” position, the handle wil be automatically connected to the receiver, indicates a red LED normally ON after the connection is successful, if is not successful, please switch gamepad power or insert the receiver again.
2. the power switch in the “off” position place, the gamepad is in corpletely tumed off, power consumption is OmA

The Gamepad according to the prompt after the connection is successful, the game please keep proper distance with the television:

Gamepad sieep Model

• (Boot attachment) when there is no connect receiver, after 10 seconds into sleep mode;
• if there is no any operation of shaft and buttons, 5 minutes after go into sleep mode;
• When into Sleep mode need to press the HOME key wake up after a red LED light, can begin to play games,

The gamepad code
When the gamepad can’t operation or to increase a new gamepad, we need the gamepad with the receiver in the code;

The receiver is powered on for 15 seconds after treatment of code state;

• The receiver to the SmartTV or TV box USB port, turn on the TV orTV box power
• The gamepad is equipped with battery, the power switch to “ON” position (to code the distance of not more than 2 meters), express press HOME button, LED flashing rapidly, marks the state of the code;
• When the red LED normally on state, the code is successful, if the horse did not succeed, please turn off the controller power supply wait 3 seconds and then open the power supply or the receiver.
• If you need two gamepad into the game, with the same like before way.
• The normal default mode of Android, if it for computer operation required need by 5 seconds then open for PC mode

Attentions:

1. When the gamepad unexpected disconnection, it is have voltage protection and other conditions, can’t be connected making the gamepad, and the connection without the function and other crash loading state, then need to turn off the power switch 3 seconds after re open;
2. if you have any other questions, please contact the vendor!
3. Don’t take this product placed in extremely hot and huid place, put it in a dry place;
4. Children should be used under the supervision of adults!
5. Don’t use alcohol to wipe any part of the product, please use a soft cloth and a small amount of water to clean the product!
6. Can be compatible with PCIPS3

Product warranty card
The purchase of the product, please fill in this card, and be ready to save

• User profile
• customer name
• Sex
• postal address
• zip code
• contact number
• Where to buy
• Date of
• purchase
• Name and
• specifications
• Sale No
• Serial No
• Dealer
• signature
• User signature

Troubleshooting

• Can’t get the gamepad to turn on?
  • Allow more than 30 minutes to charge (a low battery may impede startup).
  • To reset, press and hold “Power + Home” for five seconds.
• Problems Pairing with Bluetooth?
  • Make sure the gamepad’s LED is flashing quickly in pairing mode.
  • Remove previous pairings from the device’s settings and try again.
• Stuttering or Input Lag?
  • Use USB-C wired mode when playing competitive video games.
  • Prevent Bluetooth and Wi-Fi interference by keeping your router away.
• Are Buttons Not Working?
  • Use the Windows Game Controller Settings to re-calibrate.
  • Use Zhuoaite’s app to update the firmware, if it is available.
• No Feedback Vibrations?
  • Verify the game’s options (they can be deactivated).
  • Use the Windows controller properties to test motors.

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0cm between the radiator and your body
