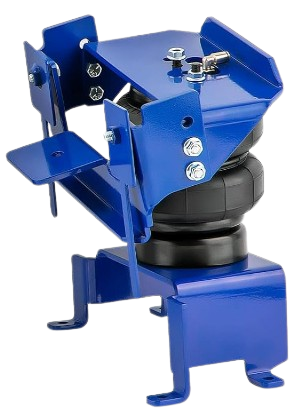

MaXpeedingrods Ford F-150 Rear Suspension Enhancement System
Introduction
For Ford F-150 pickups (compatible with select model years), the MaXpeedingrods Ford F-150 Rear Suspension Enhancement System is a high-performance upgrade intended to increase load capacity, stability, and ride comfort. This system is perfect for truck owners who regularly tow trailers, haul heavy loads, or drive on uneven terrain because it is designed with heavy-duty components. It lessens bottoming out, body roll, and drooping by substituting strengthened materials for weak manufacturing elements.
Specification
- Compatibility: Ford F-150 (check particular year/model fitment)
- Material: High-strength steel, zinc-plated/powder-coated for corrosion resistance
- Load Capacity: Allows for a payload increase of +20–30% in comparison to stock suspension
- Included Components: Coil spring assistance or reinforced leaf springs (depending on the kit) Improved shock absorbers, if any Bushings, mounting hardware, and U-bolts
- Warranty: usually 1-2 years (check with the manufacturer)
Features
- Improved Load Support: Lessens sag in the back end when towing or carrying large loads.
- Enhanced Stability: Reduces body roll and sway for safer handling.
- Durable Construction – Zinc-plated or powder-coated to avoid rust and wear.
- Easy Installation – Bolt-on design (minimum mechanical skills required).
- Smoother Ride: Increases rigidity under load without sacrificing comfort.
Safety Information
- Professional Installation Suggested: Handling may be impacted by improper installation.
- Verify Weight Limits: Don’t go above the Gross Vehicle Weight Rating (GVWR) of your F-150.
- Correctly Torque Hardware: Mounting bolts and U-bolts need to be tightened according to specifications.
- Examine Frequently: Every six months, check for loose parts, rust, or cracks.
- Steer clear of off-road abuse: these vehicles aren’t made for extreme rock crawling, but rather for load support.

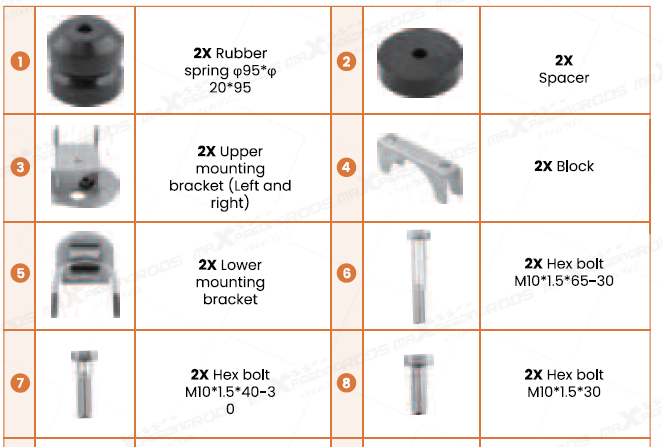

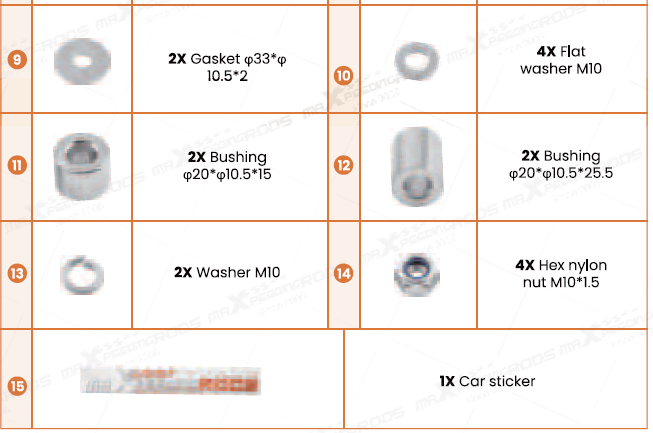

Rubber Kit List
PRE-INSTALLATION NOTICE
- This product will not increase the load capacity of your vehicle.
- Do not exceed the manufacturer’s recommended weight limit.
- The installation process may require drilling, professional installation is recommended to ensure personal safety.
- All modifications must be installed by qualified personnel and in compliance with your local modification regulations.
INSTALLATION GUIDE
REMOVING THE BUMP STOP
- Raise the vehicle with a jack and let the suspension kit assembly can be put into position between the axle and frame.
Remove the factory bump stop.

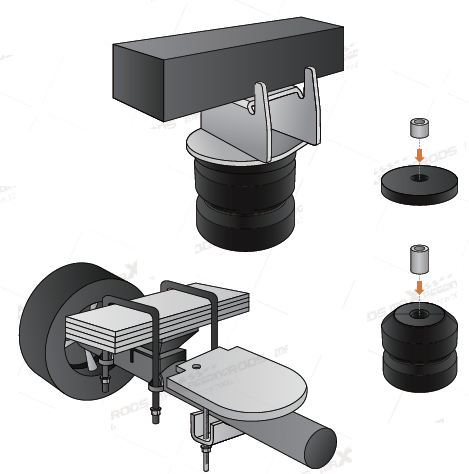

INSTALLING THE UPPER AND LOWER BRACKETS

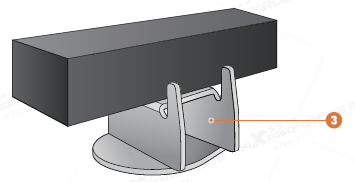

- Attach the upper mounting bracket( of the Rubber kit list) to the frame.

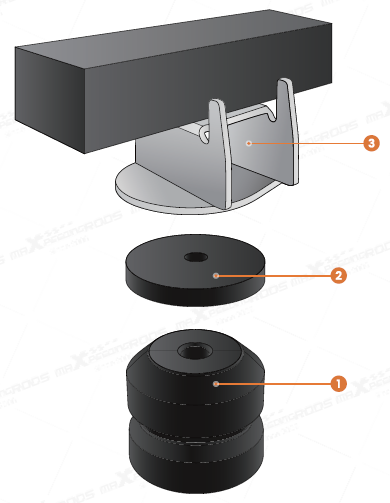

- Install the rubber spring( 0 of the Rubber kit list) to the upper mounting bracket{ E) of the Rubber list 11st) with washers and lock nuts.

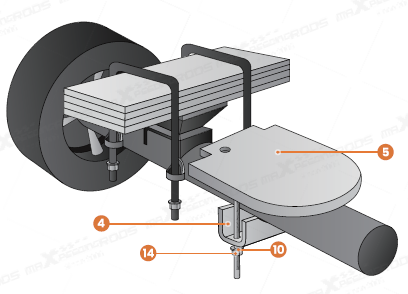

- Install the lower mounting bracket ( 4I:) of the Rubber kit list) with block: ( It, of the Rubber kit list) to the axle.
- Repeat the some process on the other side.
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
MaXpeedingrods Ford F-150 Rear Suspension Enhancement System Installation Guide
FAQs
What is the MaXpeedingrods Ford F-150 Rear Suspension Enhancement System?
The MaXpeedingrods Ford F-150 Rear Suspension Enhancement System is an aftermarket upgrade kit designed to improve the handling, stability, and load-carrying capacity of the rear suspension on Ford F-150 trucks.
What are the key components included in the suspension enhancement system?
The system typically includes heavy-duty leaf springs, upgraded shock absorbers, and hardware necessary for installation.
What benefits does the MaXpeedingrods suspension enhancement system provide?
The system helps to reduce rear-end sagging when carrying heavy loads, improves towing stability, enhances overall ride quality, and increases the lifespan of rear suspension components.
Is the MaXpeedingrods suspension enhancement system compatible with all Ford F-150 models?
The system is designed to be compatible with specific model years and configurations of the Ford F-150. It’s essential to check compatibility before purchasing.
How difficult is the installation process for the MaXpeedingrods suspension enhancement system?
Installation difficulty can vary depending on the individual’s mechanical skill level and experience. Generally, it requires basic hand tools and moderate mechanical knowledge. Some enthusiasts may opt for professional installation.
